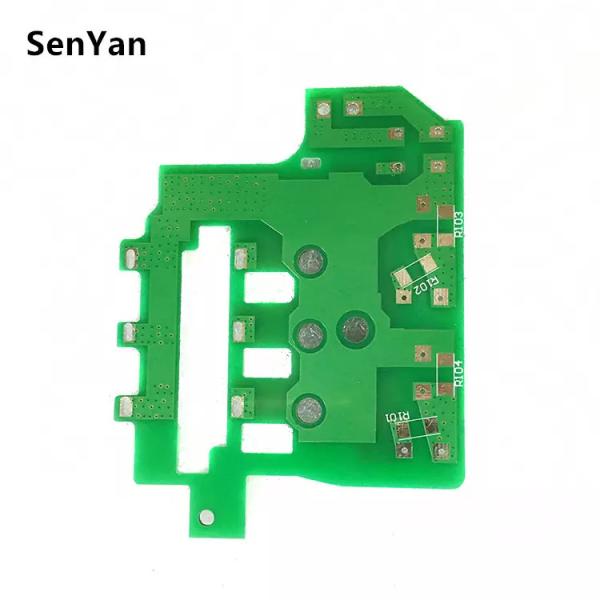

Green Solder Mask Double Side PCB Android Smart Watch PCB Board

Name: Green Solder Mask Double Side PCB Android Smart Watch PCB Board
Brand: SenYan
Price: 1 USD

Wholesale Green Solder Mask Double Side PCB Android Smart Watch PCB Board from china suppliers

Brand Name : SenYan

Model Number : PCB board

Certification : ISO14001,ISO13485,ISO9001,IATF16949

Place of Origin : China

MOQ : 1pcs

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100000pcs

Delivery Time : 1-30days

Packaging Details : PCB: Vacuum Packing / PCBA: ESD Packing

Name : PCB board

Solder mask : Green

Silk Screen : White

Surface Technics : HASL-F

Max panel size : 32＂×20＂（800mm×508mm）

Layer count : 2~18

Material : FR4 CEM1 CEM3 Hight TG

Item : pcb

Contact Now

Power Bank Power Supply AC Circuit Board Double Side PCB

1.Detailed Specification of PCB Board Manufacturing

1	Layer	1-30 layer
2	Material	FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum
3	Board thickness	0.4mm-4mm
4	Max.finished board side	500mm*500mm
5	Min.drilled hole size	0.25mm
6	Min.line width	0.10mm(4mil)
7	Min.line spaceing	0.10mm(4mil)
8	Surface finish/treatment	HASL/HASL lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating
9	Copper thickness	1/2OZ 1OZ 2OZ 3OZ
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vacuum packing,Plastic bag
12	Outer packing	Standard carton packing
13	Hole tolerance	PTH:±0.076,NTPH:±0.05
14	Certificate	ISO9001,ISO14001,ROHS,CQC
15	Profiling Punching	Routing,V-CUT,Beveling
16	Assembly Service	Providing OEM service to all sorts of printed circuit board assembly

2.Detailed Terms for PCB Assembly

Technical Requirement	Professional Surface-mounting and Through-hole soldering Technology
	Various sizes like 1206,0805,0603 components SMT technology
	ICT(In Circuit Test),FCT(Functional Circuit Test) technology
	PCB Assembly With CE,FCC,Rohs Approval
	Nitrogen gas reflow soldering technology for SMT
	High Standard SMT&Solder Assembly Line
	High density interconnected board placement technology capacity
Quote&Production Requirement	Gerber File or PCB File for Bare PCB Board Fabrication
	Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly
	To reduce the quote time, please provide us the full part number for each components,Quantity per board also the quantity for orders.
	Testing Guide&Function Testing method to ensure the quality to reach nearly 0% scrap rate
OEM/ODM/EMS Services	PCBA, PCB assembly: SMT & PTH & BGA
	PCBA and enclosure design
	Components sourcing and purchasing
	Quick prototyping
	Plastic injection molding
	Metal sheet stamping
	Final assembly
	Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
	Custom clearance for material importing and product exporting
Other PCB Assembly Equipments	SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4
	Reflow Oven: FolunGwin FL-RX860
	Wave Soldering Machine: FolunGwin ADS300
	Automated Optical Inspection (AOI): Aleader ALD-H-350B,X-RAY Testing Service
	Fully Automatic SMT Stencil Printer: FolunGwin Win-5

Green Solder Mask Double Side PCB Android Smart Watch PCB Board

Factory Manufacture Capability

layer	1-20 layer
Material type	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
Board thickness	0.21mm to 7.0mm
Copper thickness	0.5 OZ to 6 oz
Size	Max. Board Size: 580mm×1100mm
	Min. Drilled Hole Size: 0.2 mm (8 mil)
	Min. Line Width: 4mil (0.1mm)
	Min. Line Spacing: 4mil (0.1mm)
Surface finishing	HASL / HASL lead free, HAL, Chemical tin, Immersion Silver/Gold, OSP, Gold plating
Solder Mask Color	Green/Yellow/Black/White/Red/Blue
Tolerance	Shape tolerance: ±0.13
Tolerance	Hole tolerance: PTH: ±0.076 NPTH: ±0.05
Certificate	UL, ISO 9001, ISO 14001
Special requirements	Buried and blind vias+controlled impedance +BGA
Profiling	Punching, Routing, V-CUT, Beveling

Company Information

Shenzhen Senyan Circuit Co., Ltd.

Shenzhen SenYan Co.,Ltd. is a professional PCB company that has single-sided, double-sided and multilayer PCBs. And we also specialize in manufacturing SMT,DIP and other special requirment PCBs,such as high precision half orifice circuit boards, impedance circuit boards and buried blind hole circuit boards.Meanwhile we can copy any PCB/PCBA according to our customer’s sample board...

If you have projects that need PCB, please don't hesitate to contact us, we will reply and prepare quote for you as soon as possible.

Green Solder Mask Double Side PCB Android Smart Watch PCB Board

Specification

Layer	1-20 layer
Material Type	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
Board Thickness	0.21mm to 7.0mm
Copper Thickness	0.5 OZ to 6 oz
Size(Custom)	Max. Board Size: 580mm×1100mm
	Min. Drilled Hole Size: 0.2 mm (8 mil)
	Min. Line Width: 4mil (0.1mm)
	Min. Line Spacing: 4mil (0.1mm)
Surface Finishing	HASL / HASL lead free, HAL, Chemical tin,
Surface Finishing	Immersion Silver / Gold, OSP, Gold plating
Solder Mask Color	Green / Yellow / Black / White / Red / Blue
Tolerance	Shape tolerance: ±0.13
Tolerance	Hole tolerance: PTH: ±0.076 NPTH: ±0.05
Certificate	International Certification Standards
Special Requirements	Buried and blind vias+controlled impedance +BGA
Profiling	Punching, Routing, V-CUT, Beveling
